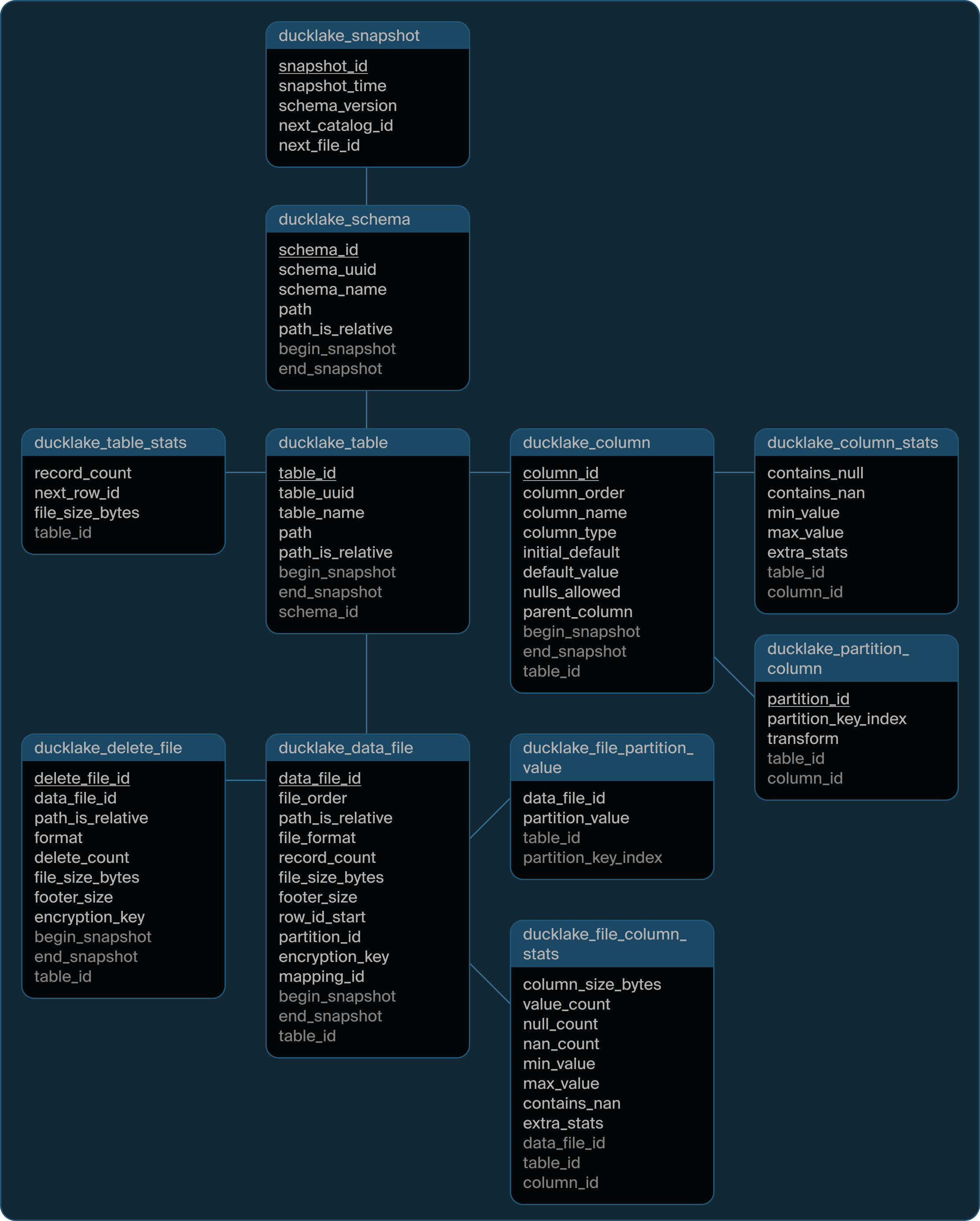

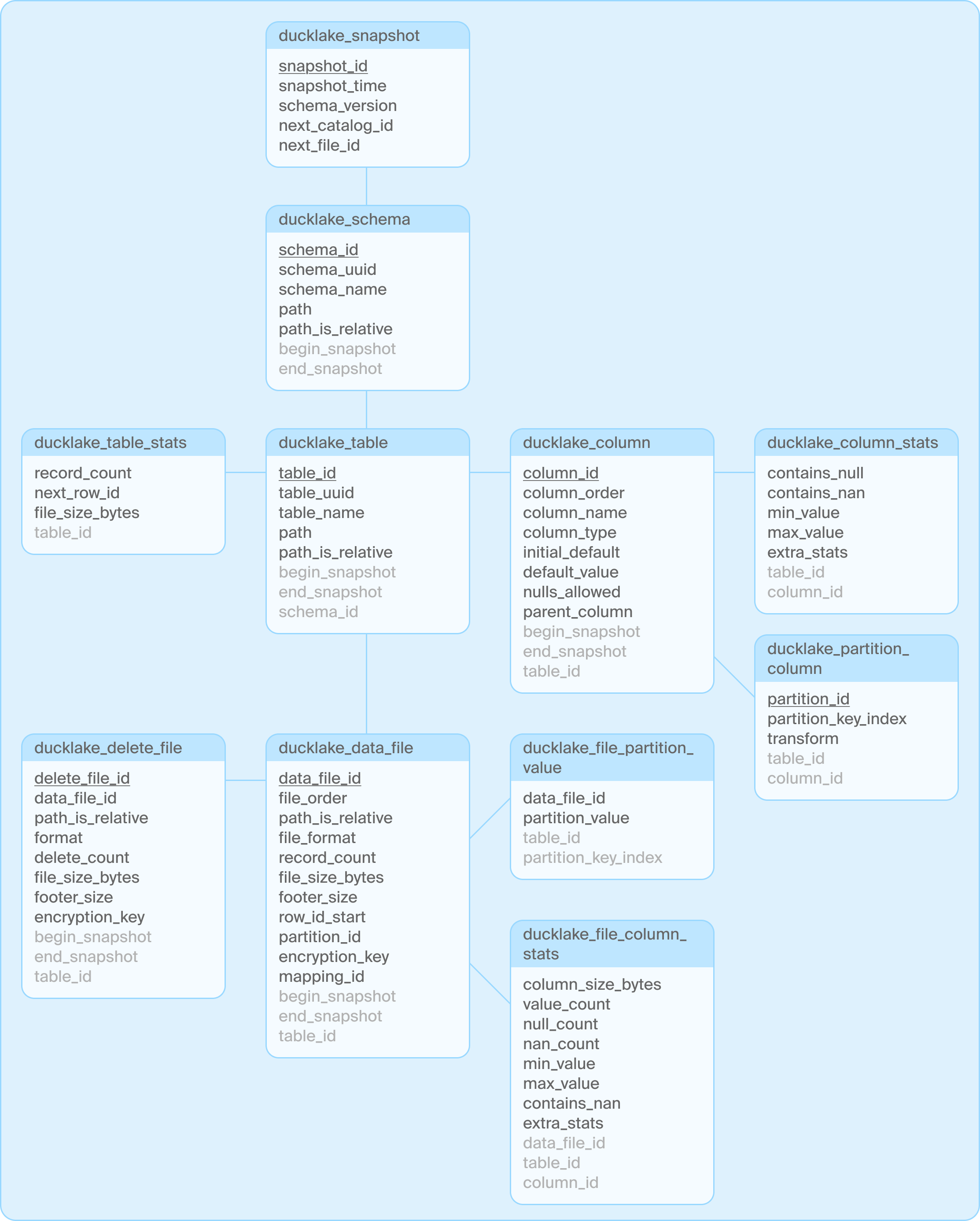

DuckLake uses 19 tables to store metadata and to stage data fragments for data inlining. Below we describe all those tables and their semantics.
Snapshots
DuckLake Schema
Data Files and Tables
ducklake_data_file
ducklake_delete_file
ducklake_files_scheduled_for_deletion
ducklake_inlined_data_tables
Statistics
DuckLake supports statistics on the table, column and file level.
Partitioning Information
DuckLake supports defining explicit partitioning.
Auxiliary Tables
Full Schema Creation Script
Below is the full SQL script to create a DuckLake metadata database:
CREATE TABLE ducklake_metadata (key VARCHAR NOT NULL, value VARCHAR NOT NULL);
CREATE TABLE ducklake_snapshot (snapshot_id BIGINT PRIMARY KEY, snapshot_time TIMESTAMPTZ, schema_version BIGINT, next_catalog_id BIGINT, next_file_id BIGINT);
CREATE TABLE ducklake_snapshot_changes (snapshot_id BIGINT PRIMARY KEY, changes_made VARCHAR);
CREATE TABLE ducklake_schema (schema_id BIGINT PRIMARY KEY, schema_uuid UUID, begin_snapshot BIGINT, end_snapshot BIGINT, schema_name VARCHAR);
CREATE TABLE ducklake_table (table_id BIGINT, table_uuid UUID, begin_snapshot BIGINT, end_snapshot BIGINT, schema_id BIGINT, table_name VARCHAR);
CREATE TABLE ducklake_view (view_id BIGINT, view_uuid UUID, begin_snapshot BIGINT, end_snapshot BIGINT, schema_id BIGINT, view_name VARCHAR, dialect VARCHAR, sql VARCHAR, column_aliases VARCHAR);
CREATE TABLE ducklake_tag (object_id BIGINT, begin_snapshot BIGINT, end_snapshot BIGINT, key VARCHAR, value VARCHAR);
CREATE TABLE ducklake_column_tag (table_id BIGINT, column_id BIGINT, begin_snapshot BIGINT, end_snapshot BIGINT, key VARCHAR, value VARCHAR);
CREATE TABLE ducklake_data_file (data_file_id BIGINT PRIMARY KEY, table_id BIGINT, begin_snapshot BIGINT, end_snapshot BIGINT, file_order BIGINT, path VARCHAR, path_is_relative BOOLEAN, file_format VARCHAR, record_count BIGINT, file_size_bytes BIGINT, footer_size BIGINT, row_id_start BIGINT, partition_id BIGINT, encryption_key VARCHAR, partial_file_info VARCHAR);
CREATE TABLE ducklake_file_column_statistics (data_file_id BIGINT, table_id BIGINT, column_id BIGINT, column_size_bytes BIGINT, value_count BIGINT, null_count BIGINT, min_value VARCHAR, max_value VARCHAR, contains_nan BOOLEAN);
CREATE TABLE ducklake_delete_file (delete_file_id BIGINT PRIMARY KEY, table_id BIGINT, begin_snapshot BIGINT, end_snapshot BIGINT, data_file_id BIGINT, path VARCHAR, path_is_relative BOOLEAN, format VARCHAR, delete_count BIGINT, file_size_bytes BIGINT, footer_size BIGINT, encryption_key VARCHAR);
CREATE TABLE ducklake_column (column_id BIGINT, begin_snapshot BIGINT, end_snapshot BIGINT, table_id BIGINT, column_order BIGINT, column_name VARCHAR, column_type VARCHAR, initial_default VARCHAR, default_value VARCHAR, nulls_allowed BOOLEAN, parent_column BIGINT);
CREATE TABLE ducklake_table_stats (table_id BIGINT, record_count BIGINT, next_row_id BIGINT, file_size_bytes BIGINT);
CREATE TABLE ducklake_table_column_stats (table_id BIGINT, column_id BIGINT, contains_null BOOLEAN, contains_nan BOOLEAN, min_value VARCHAR, max_value VARCHAR);
CREATE TABLE ducklake_partition_info (partition_id BIGINT, table_id BIGINT, begin_snapshot BIGINT, end_snapshot BIGINT);
CREATE TABLE ducklake_partition_column (partition_id BIGINT, table_id BIGINT, partition_key_index BIGINT, column_id BIGINT, transform VARCHAR);
CREATE TABLE ducklake_file_partition_value (data_file_id BIGINT PRIMARY KEY, table_id BIGINT, partition_key_index BIGINT, partition_value VARCHAR);
CREATE TABLE ducklake_files_scheduled_for_deletion (data_file_id BIGINT, path VARCHAR, path_is_relative BOOLEAN, schedule_start TIMESTAMPTZ);
CREATE TABLE ducklake_inlined_data_tables (table_id BIGINT, table_name VARCHAR, schema_snapshot BIGINT);
